Timber Roofing
Samples of timber roofing projects undertaken by NEF Carpentry.

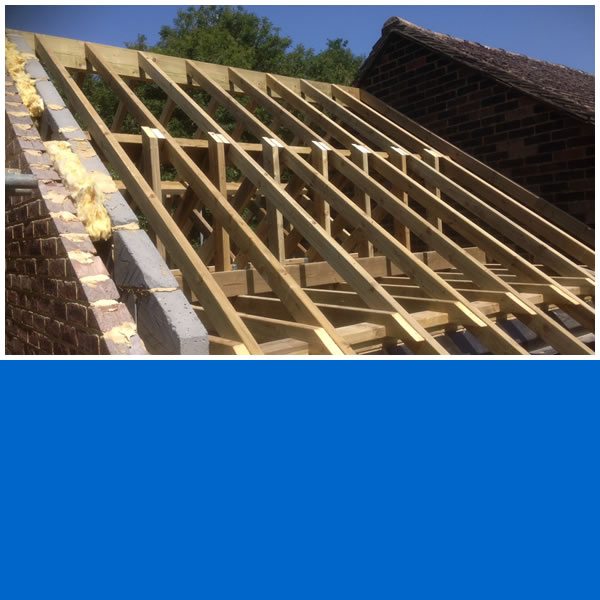

Cut and pitch roofing at Littleton Lane, Reigate
Cut and pitched using pearlings, strutts and binders to tie the structure together.

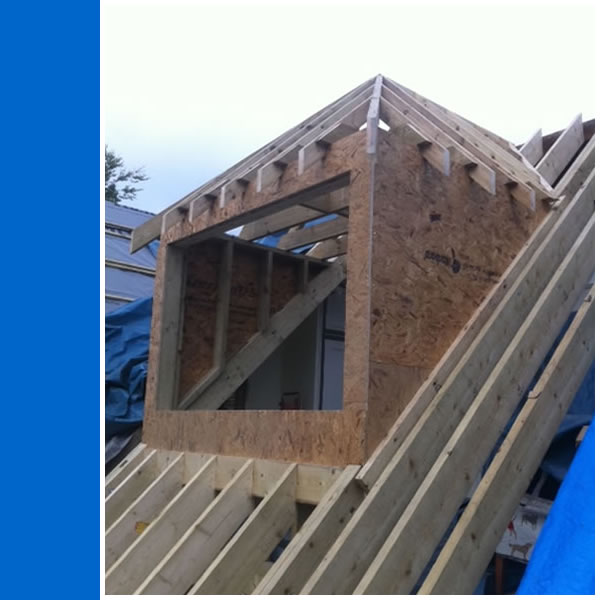

Cut and Pitch Roofing, Brockham Lane
This shows one of the two dormas and the small hipped roof pitched on top of it.

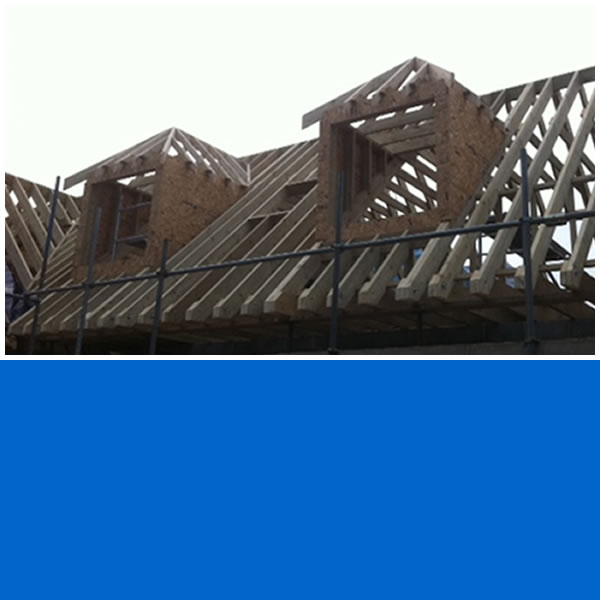

Cut and Pitch Roofing, Brockham Lane
This shows two dormas formed in the side of a roof to create more room internally. Each dorma has a small hipped roof pitched on top of it.

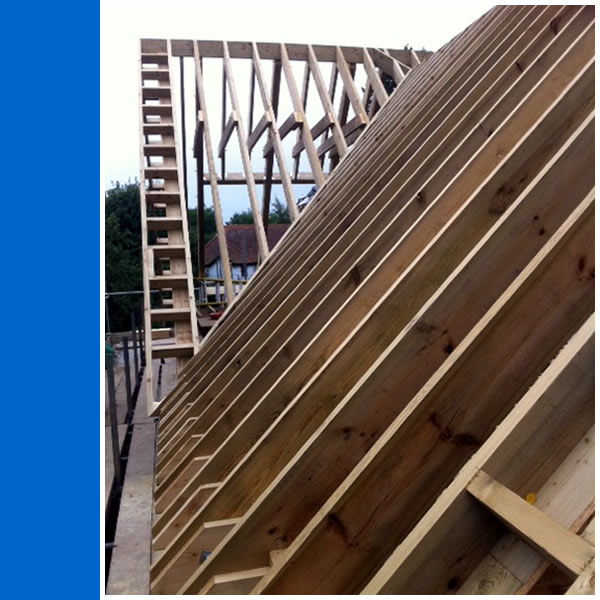

Cut and Pitch Roofing, Brockham Lane
This shows common rafters intersecting and forming a valley between roof pitches. Also shows a gable ladder and rafter feet trimmed ready for fitting of facias and soffets.

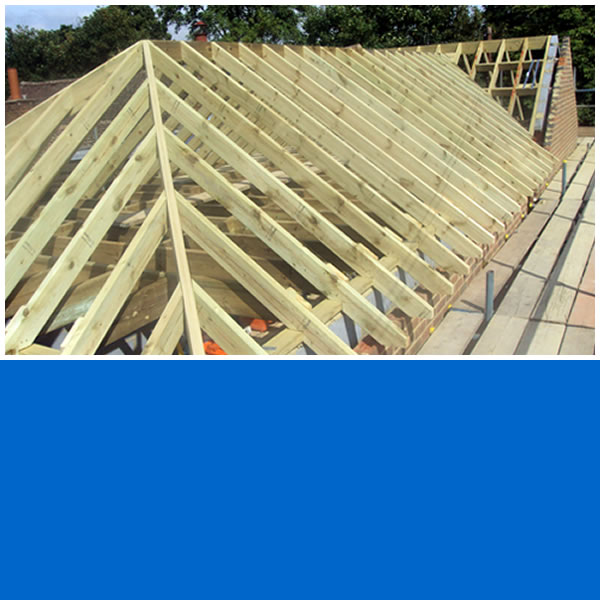

Cut and Pitch Roof in Brockham
This shows the hip and dorma sections of the roof.
Cut and Pitch Roof in Brockham
This shows the valley where the two roofs meet.

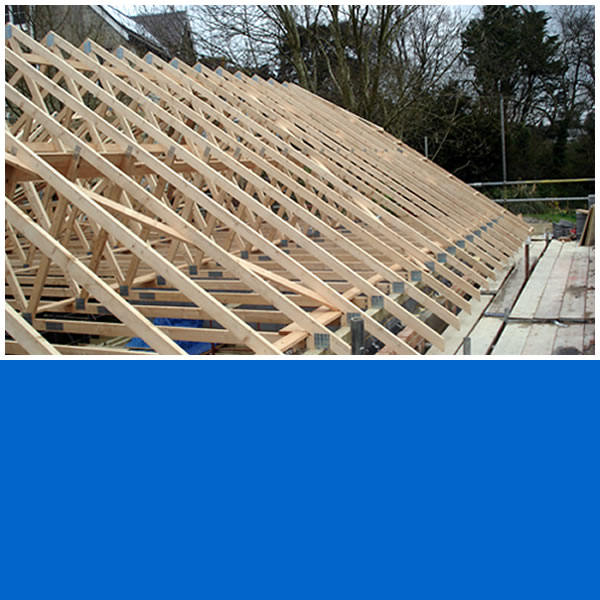

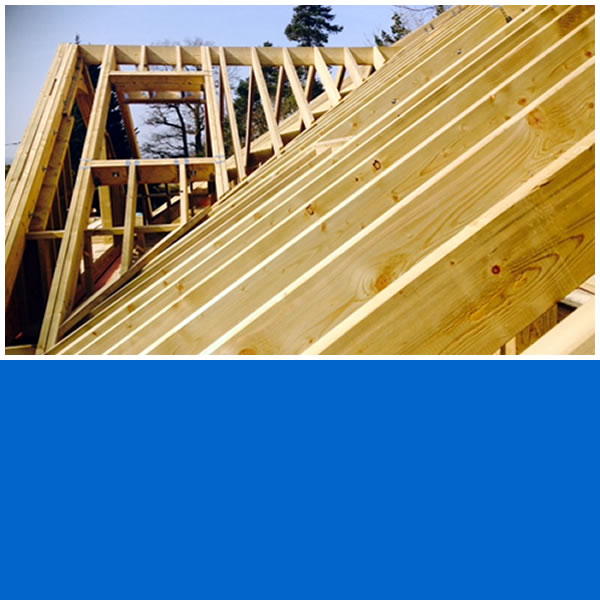

Trussed Roof, Reigate.
Trussed roof set out, fixed and trimmed in Reigate.

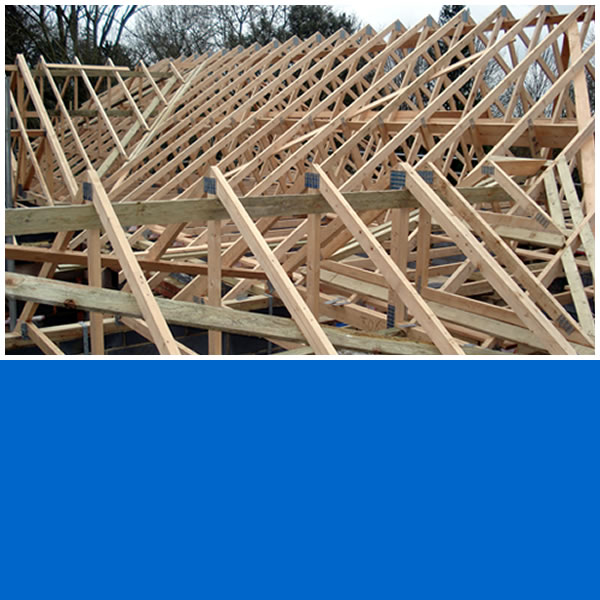

Trussed Roof, Reigate.
Trussed roof set out, fixed and trimmed in Reigate.
Trussed Roof, Reigate.
Hipped end on a roof cut and pitched by NEF Carpentry.
